Material Introduction

Advanced structural ceramics, due to their one-of-a-kind crystal framework and chemical bond characteristics, show performance advantages that steels and polymer products can not match in extreme environments. Alumina (Al ₂ O THREE), zirconium oxide (ZrO TWO), silicon carbide (SiC) and silicon nitride (Si five N ₄) are the four major mainstream design ceramics, and there are essential distinctions in their microstructures: Al two O five comes from the hexagonal crystal system and relies on solid ionic bonds; ZrO ₂ has three crystal kinds: monoclinic (m), tetragonal (t) and cubic (c), and acquires unique mechanical residential or commercial properties through stage adjustment strengthening device; SiC and Si Six N four are non-oxide porcelains with covalent bonds as the major part, and have more powerful chemical stability. These architectural differences directly cause significant distinctions in the preparation procedure, physical homes and design applications of the 4. This post will systematically evaluate the preparation-structure-performance partnership of these four porcelains from the viewpoint of products scientific research, and explore their prospects for commercial application.

(Alumina Ceramic)

Prep work procedure and microstructure control

In regards to prep work process, the 4 ceramics show apparent differences in technological routes. Alumina ceramics make use of a fairly conventional sintering process, usually using α-Al ₂ O four powder with a pureness of greater than 99.5%, and sintering at 1600-1800 ° C after completely dry pushing. The secret to its microstructure control is to prevent irregular grain growth, and 0.1-0.5 wt% MgO is normally added as a grain limit diffusion prevention. Zirconia porcelains require to introduce stabilizers such as 3mol% Y ₂ O six to keep the metastable tetragonal phase (t-ZrO ₂), and make use of low-temperature sintering at 1450-1550 ° C to prevent too much grain development. The core process obstacle depends on properly regulating the t → m phase shift temperature level window (Ms point). Since silicon carbide has a covalent bond ratio of as much as 88%, solid-state sintering requires a heat of greater than 2100 ° C and relies on sintering aids such as B-C-Al to develop a liquid stage. The response sintering technique (RBSC) can achieve densification at 1400 ° C by infiltrating Si+C preforms with silicon melt, however 5-15% complimentary Si will certainly stay. The preparation of silicon nitride is one of the most intricate, typically using general practitioner (gas pressure sintering) or HIP (hot isostatic pressing) procedures, including Y ₂ O FIVE-Al ₂ O ₃ series sintering aids to develop an intercrystalline glass stage, and warmth therapy after sintering to take shape the glass phase can significantly boost high-temperature efficiency.

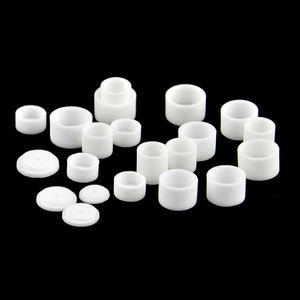

( Zirconia Ceramic)

Comparison of mechanical buildings and strengthening system

Mechanical residential properties are the core assessment indications of structural ceramics. The 4 sorts of materials show completely different strengthening systems:

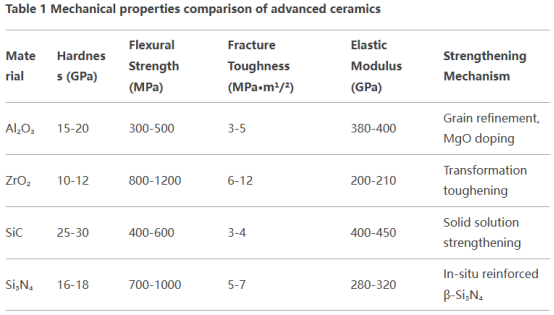

( Mechanical properties comparison of advanced ceramics)

Alumina generally relies on fine grain fortifying. When the grain dimension is decreased from 10μm to 1μm, the stamina can be raised by 2-3 times. The excellent durability of zirconia originates from the stress-induced phase improvement device. The stress field at the fracture suggestion triggers the t → m stage improvement gone along with by a 4% quantity expansion, resulting in a compressive stress and anxiety shielding impact. Silicon carbide can boost the grain border bonding stamina via strong option of aspects such as Al-N-B, while the rod-shaped β-Si two N four grains of silicon nitride can produce a pull-out impact comparable to fiber toughening. Crack deflection and linking contribute to the enhancement of sturdiness. It deserves noting that by creating multiphase ceramics such as ZrO ₂-Si Three N Four or SiC-Al Two O ₃, a selection of toughening mechanisms can be worked with to make KIC go beyond 15MPa · m ¹/ ².

Thermophysical homes and high-temperature habits

High-temperature security is the crucial benefit of architectural ceramics that differentiates them from typical materials:

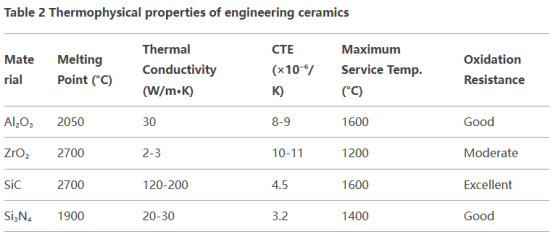

(Thermophysical properties of engineering ceramics)

Silicon carbide displays the most effective thermal monitoring efficiency, with a thermal conductivity of as much as 170W/m · K(comparable to light weight aluminum alloy), which is due to its easy Si-C tetrahedral structure and high phonon breeding rate. The low thermal development coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have excellent thermal shock resistance, and the essential ΔT value can reach 800 ° C, which is particularly ideal for repeated thermal biking environments. Although zirconium oxide has the highest possible melting point, the conditioning of the grain limit glass stage at heat will certainly cause a sharp decrease in strength. By embracing nano-composite innovation, it can be increased to 1500 ° C and still maintain 500MPa toughness. Alumina will certainly experience grain limit slip above 1000 ° C, and the enhancement of nano ZrO ₂ can form a pinning impact to prevent high-temperature creep.

Chemical stability and deterioration actions

In a destructive atmosphere, the 4 kinds of ceramics display dramatically various failure systems. Alumina will certainly dissolve on the surface in strong acid (pH <2) and strong alkali (pH > 12) solutions, and the corrosion price increases exponentially with enhancing temperature, getting to 1mm/year in steaming concentrated hydrochloric acid. Zirconia has excellent tolerance to inorganic acids, but will undergo reduced temperature deterioration (LTD) in water vapor settings over 300 ° C, and the t → m phase shift will certainly cause the formation of a microscopic crack network. The SiO two safety layer based on the surface area of silicon carbide gives it outstanding oxidation resistance listed below 1200 ° C, yet soluble silicates will be produced in liquified alkali metal atmospheres. The rust behavior of silicon nitride is anisotropic, and the corrosion price along the c-axis is 3-5 times that of the a-axis. NH Six and Si(OH)₄ will certainly be produced in high-temperature and high-pressure water vapor, bring about material cleavage. By maximizing the make-up, such as preparing O’-SiAlON ceramics, the alkali corrosion resistance can be boosted by more than 10 times.

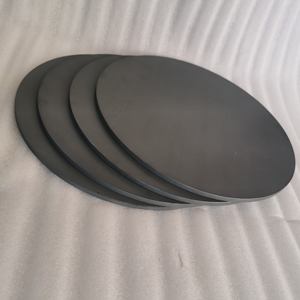

( Silicon Carbide Disc)

Normal Engineering Applications and Situation Studies

In the aerospace area, NASA makes use of reaction-sintered SiC for the leading side parts of the X-43A hypersonic airplane, which can hold up against 1700 ° C aerodynamic heating. GE Aeronautics utilizes HIP-Si three N four to produce turbine rotor blades, which is 60% lighter than nickel-based alloys and permits higher operating temperatures. In the medical area, the fracture strength of 3Y-TZP zirconia all-ceramic crowns has actually gotten to 1400MPa, and the life span can be included more than 15 years via surface area slope nano-processing. In the semiconductor sector, high-purity Al ₂ O two porcelains (99.99%) are utilized as cavity materials for wafer etching tools, and the plasma rust price is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.

Technical challenges and development trends

The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm components < 0.1 mm ), and high manufacturing cost of silicon nitride(aerospace-grade HIP-Si six N four reaches $ 2000/kg). The frontier growth directions are focused on: 1st Bionic structure design(such as shell split structure to increase toughness by 5 times); ② Ultra-high temperature sintering modern technology( such as spark plasma sintering can achieve densification within 10 minutes); ③ Intelligent self-healing porcelains (having low-temperature eutectic stage can self-heal cracks at 800 ° C); four Additive production modern technology (photocuring 3D printing accuracy has reached ± 25μm).

( Silicon Nitride Ceramics Tube)

Future growth patterns

In a comprehensive comparison, alumina will still dominate the standard ceramic market with its price advantage, zirconia is irreplaceable in the biomedical field, silicon carbide is the recommended product for extreme settings, and silicon nitride has fantastic potential in the field of premium tools. In the following 5-10 years, with the integration of multi-scale structural regulation and smart manufacturing modern technology, the efficiency limits of design porcelains are expected to achieve brand-new innovations: for example, the layout of nano-layered SiC/C ceramics can accomplish toughness of 15MPa · m 1ST/ TWO, and the thermal conductivity of graphene-modified Al ₂ O five can be enhanced to 65W/m · K. With the advancement of the “double carbon” method, the application scale of these high-performance porcelains in brand-new power (gas cell diaphragms, hydrogen storage materials), environment-friendly manufacturing (wear-resistant parts life increased by 3-5 times) and other fields is anticipated to maintain an average annual development price of more than 12%.
